Elejoy EY1600W Solar Panel Tester – MPPT Photovoltaic Multimeter (5-1600W)
₦118,500.00
Test any solar panel’s real output in 30 seconds. The Elejoy EY1600W measures Maximum Power (Pmax), Open Circuit Voltage (Voc), Voltage at Max Power (Vmp), and Current at Max Power (Imp) — so you know if your panels are actually delivering what you paid for.
Auto & Manual MPPT modes. Powers itself from the panel being tested (no batteries needed). Comes with MC4 cable, alligator clips, and EVA carry case.
Essential tool for solar installers, equipment dealers, and serious system owners.
Why You Need a Solar Panel Tester
The label on your solar panel says one thing. The actual output might say something very different. In the Nigerian market, mislabelled and underperforming panels are more common than most people realise. The only way to verify what you’re getting is to test it.

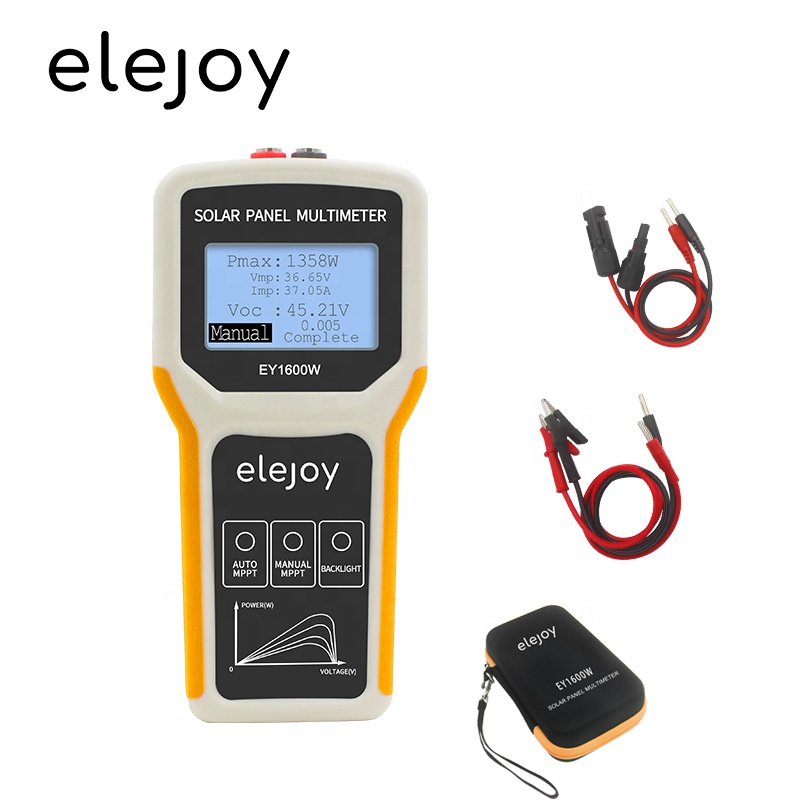

The Elejoy EY1600W is a handheld MPPT solar panel multimeter that measures the actual electrical performance of any solar panel between 5W and 1,600W. Connect it to a panel in direct sunlight and within seconds you get:
- Pmax — Maximum power output in watts
- Voc — Open circuit voltage
- Vmp — Voltage at maximum power point
- Imp — Current at maximum power point
Two Testing Modes:
- Auto MPPT — Press the button, the tester scans the full operating range and finds the maximum power point automatically
- Manual MPPT — Single snapshot reading for quick spot-checks
Practical Design:
- Powers directly from the solar panel — no batteries to charge or replace
- HD LCD display with backlight, readable in direct Nigerian sun
- MC4 connector cable for modern panels + alligator clip cable for older panels/battery terminals
- Full safety protection: over-voltage, over-current, over-temperature, reverse polarity, overload
- Compact and lightweight (450g) with included EVA protective case
Technical Specifications:
- Power range: 5W – 1,600W
- Voltage range: 12V – 60V
- Current range: 0 – 60A
- Dimensions: 165 × 80 × 30mm
- Weight: 450g
What’s in the Box: 1× Elejoy EY1600W Multimeter 1× MC4 Connector Cable 1× Alligator Clip Cable 1× EVA Protective Carry Case 1× User Manual
Note: Can test single panels or panels in parallel (up to 1600W). Cannot test panels wired in series (voltage/current may exceed device limits). Always disconnect panels from all other equipment before testing.
